Jiangsu Changlong Petrochemical Equipment Co., Ltd. (CCLPEC)

CCLPEC was established in October 2011, acquired by Zhangjiagang Furui Special Equipment Co., Ltd in 2014. CCLPEC 100% belongs to Zhangjiagang Furui Special Equipment Co., Ltd. since 2019.

CCLPEC is located in Zhangjiagang City, Jiangsu Province, China. We are a manufacturer specializing in fluid loading equipment and terminal machinery equipment. We have 26,000 square meters standardized factory, 140 employees, and more than 100 processing and manufacturing equipment.

All core components are independently developed, designed and manufactured by CCLPEC to provide customers with high-quality products. Our professional design services, precise product manufacturing, and high quality service team, provide customers with cost-effective products and services.

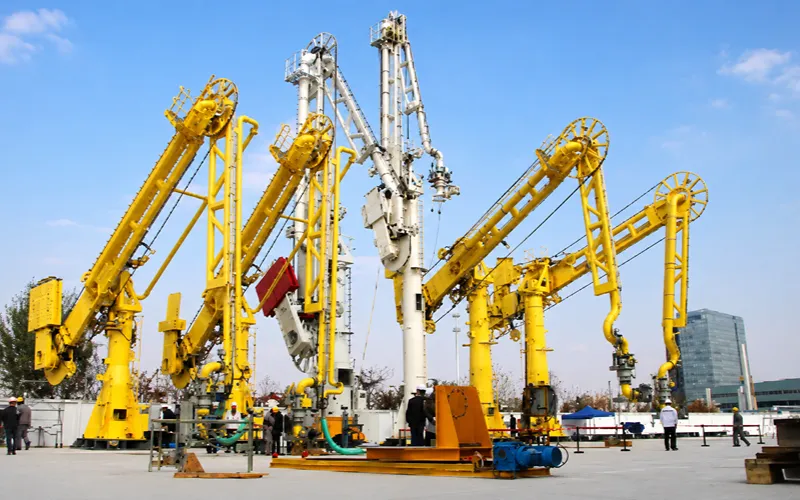

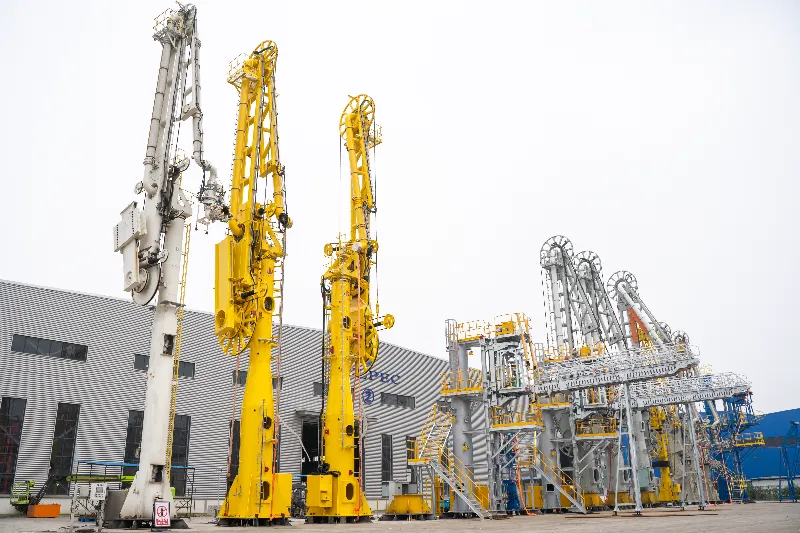

1. Marine Loading Arms

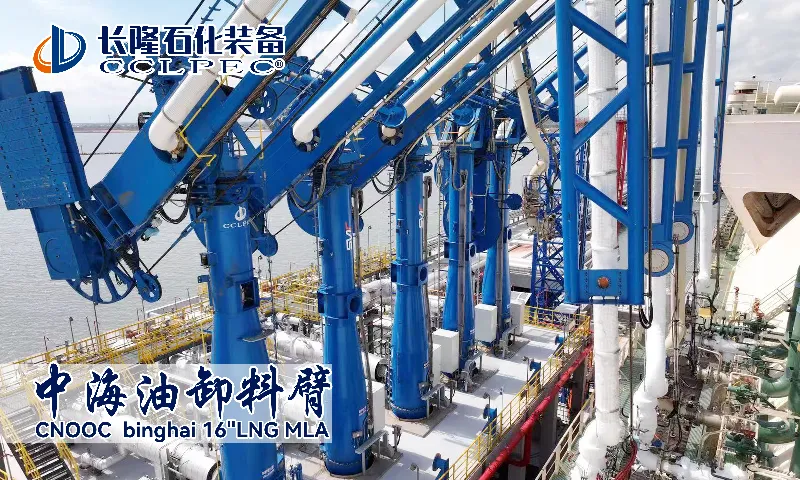

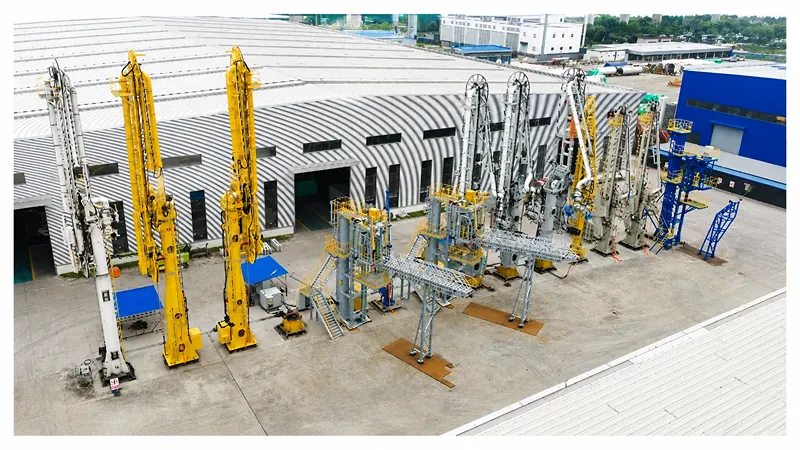

CCLPEC, as a professional manufacturer of marine loading arms, provides customers with professional liquid and gas loading/unloading solutions. We can provide all kinds of liquid and gas transfer loading/unloading arms.

LNG	LPG	HPNG	Oil
Acids	Sodium	Naphtha	Methane
Bitumen	Butane	Benzene	Ammonia

With different materials:

Carbon steel

LT Carbon steel

Stainless steel

PTFE lining

Professional manufacturer with 48,000 m² workshop. We won worldwide clients’ compliment with first level product quality and fast friendly service.

Annual productivity:

100 sets marine loading arms
150 sets loading and metering skids
400 sets truck loading arms
20 sets gangways
100 sets quick release mooring hook
500 sets folding ladders
20 sets hose crane

CCLPEC factory overview - professional and trustworthy supplier

2. Gangway

The Marine Gangway is designed to facilitate transfer between shore and ship, and vice-versa. CCLPEC Marine Gangways provide an optimum and safe access, even under severe conditions. CCLPEC supplies column type gangway, tower type gangway, and a high-standard emergency evacuation access gangway for FSRU. All these gangways meet the requirements of SIGTTO and ISO Standard. The marine gangway is comprised of tower (or column), bulwark ladder, lifting & rotating platform, driving mechanism, hydraulic power unit, PLC control system etc.

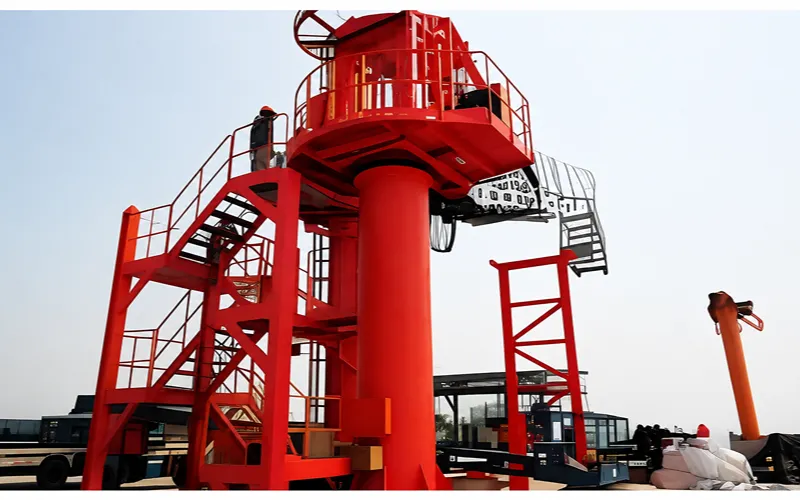

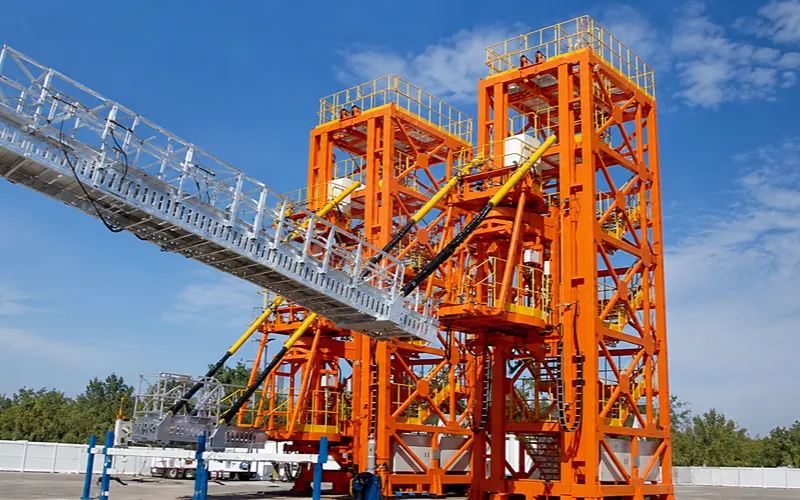

Tower Type Marine Gangway

Recommended for vessels larger than 50,000 DWT
With several floor levels (depends on the height of vessel), the platform and boarding ladder can be elevated and stop at each floor according to the height of vessel. The boarding ladder can be vertically parked to save jetty space.
Equipped with a lifting mechanism, the smaller incline angle of the boarding ladder provides a more comfortable user experience.

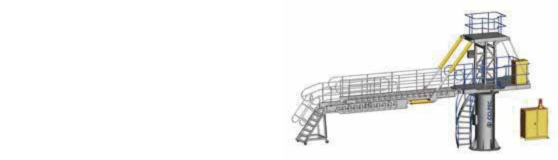

Column Type Marine Gangway

Recommended for vessels smaller than 50,000 DWT. Swift installation, easy operation and low maintenance cost. The boarding ladder will be designed either folding or telescopic models.

CONTROL SYSTEM

All electrical equipment has been explosion proofed according to ATEX or IEC standard, and meets the requirements in hazardous areas, to guarantee safe operation. Wireless controller is available.

OPTIONAL PRODUCTS

Jib Hose Crane

0.5 ~ 3.0T crane can be installed on top of the gangway

Fire Platform

Customized platform for purpose of installation of fire hydrant

Control Cabin

Easy to observe MLA movement during operation

Radio Remote Controller

Available of remote control for convenience

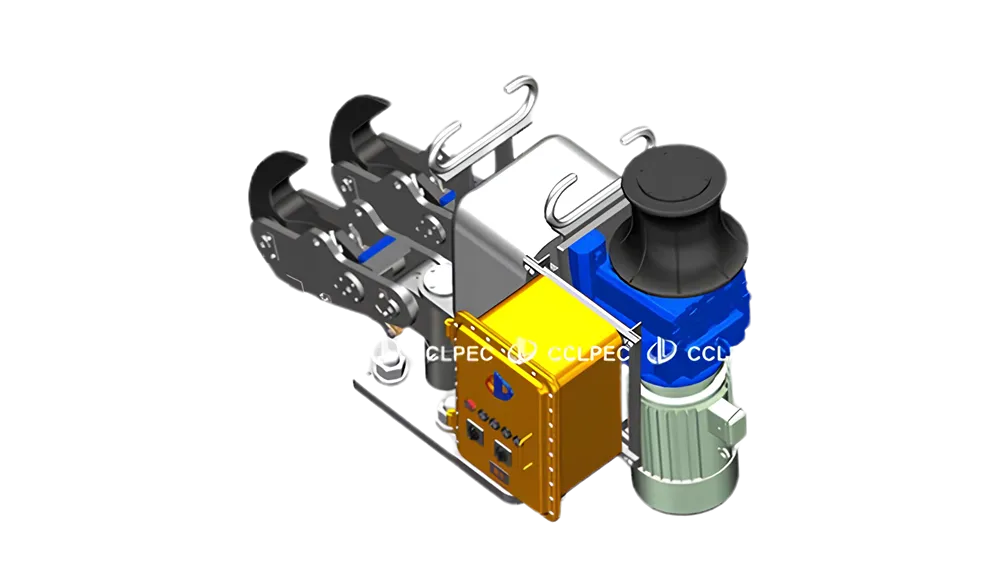

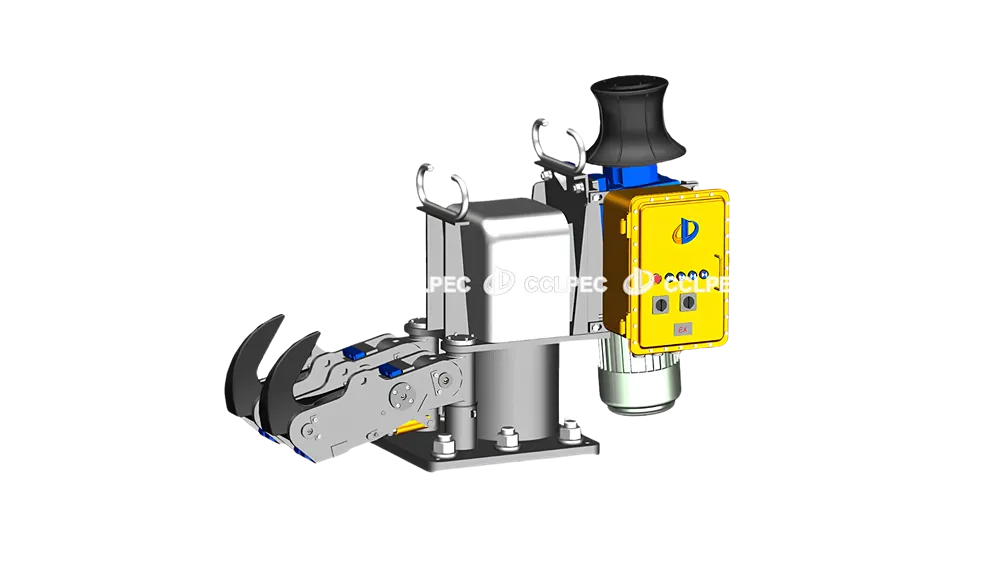

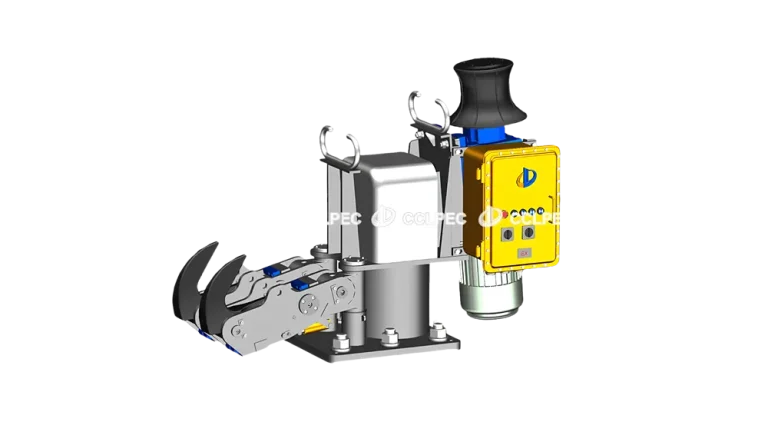

3. Quick Release Mooring Hook

CCLPEC Quick Release Mooring Hooks are designed to ensure safe and efficient mooring operations in demanding maritime environments. As an upgraded replacement for bollards, they are suitable for large and modern jetties that require mooring operations with minimal labor.

CCLPEC provides durable, safe, and easy-to-operate quick release mooring hooks, even in extremely corrosive environments, by applying robust materials, advanced manufacturing techniques, and smart design. Integration with our remote control, monitoring, and laser berthing aid system enables swift and accurate connection and detachment processes, enhancing operational efficiency and reducing the risk of human error.

Safe Working Load (SWL):	25 ~ 200 Ton
Hook Quantity:	single, double, triple and quadruple
Operation:	manual, electrical, hydraulic
Protection Grade:	IP56, IP66 etc.
Explosion Proof Certification:	ATEX / IEC / NEPSI / PCEC / CNEX

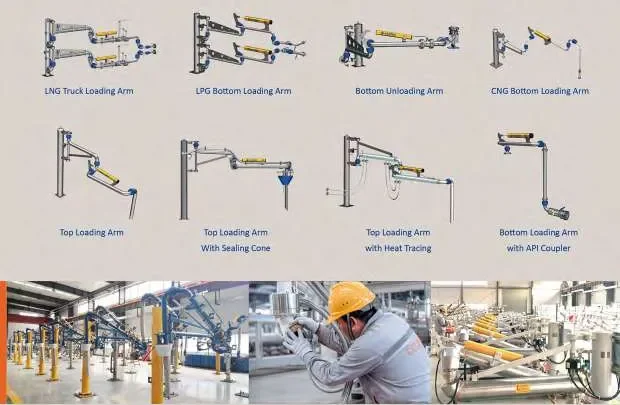

4. Truck Loading Arm

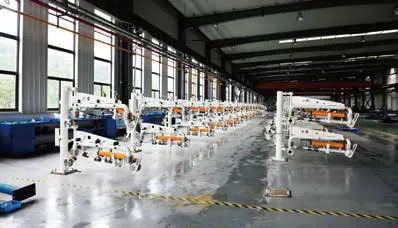

CCLPEC has been producing truck loading arms for more than ten years and has supplied more than 2000 sets of cryogenic truck loading arms, which are the most reliable and widely used products in the world. Provides customized Top or Bottom Loading Arms according to different on-site requirements and product characteristics.

Specification

Products: petrochemicals and cryogenic liquids (LH2, LNG, etc.)
Nominal Diameter: DN25 – DN200
Design Pressure: -0.06 MPa – 5.0 MPa
Design Temperature: -269° – +300°C
Pipe Material: SS316L, SS304, CS, etc.
